Hand Trolley

  • Wooden Platform SU
  • Wooden Platform SU
  • Wooden Platform SU
  • Wooden Platform SU
Wooden Platform SUWooden Platform SUWooden Platform SUWooden Platform SU

Wooden Platform SU

  • 1, Wooden Platform Truck;
  • 2, With/without mesh or woden guard;
  • 3, 2xfixed + 2xswivel wheels;
  • 4, 3-year warranty;
  • Product description: capacity 500kg; platform size: 800x500mm/ 1000x600mm/ 1000x800mm/ 1200x800mm;
  • INQUIRY   EMAIL

WOODEN PLATFORM TRUCK HAND TRUCK
▲ The easy way to move 500kg.
▲ Base platform and side panels made from plywood.
▲ Highly manceuvrable even on confined surface.
▲ Gentle to flooring,minimal traction resistance at initial movement.
▲ 2 swivel castors with brake and 2 fixed wheels,rubber tires,Ф200mm. All castors/wheels fitted with roller bearings.
▲ Delivered flat packed for easy bolt-on assembly.

Model No. Load Capacity (kg) Platform Size (mm) Platform Height (mm) Castors (mm) Overall Size (mm) Net Weight (kg)

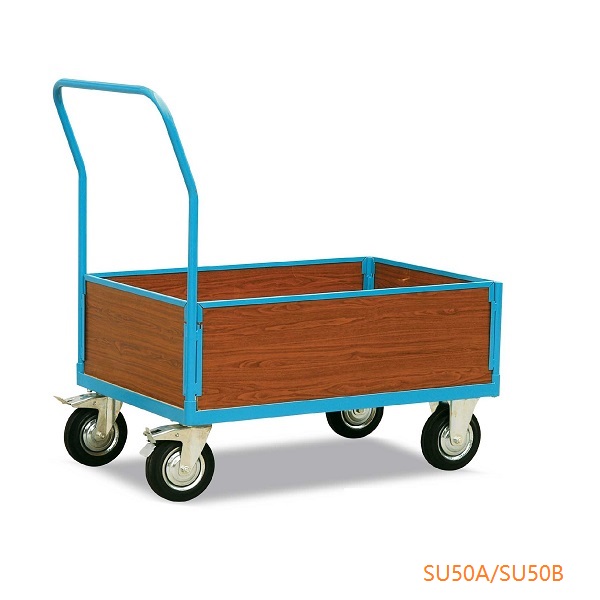

SU50A 500 1000×700 270 φ200×45 1100×700×1170 44
SU50B 500 1200×800 270 φ200×45 1300×800×1170 46

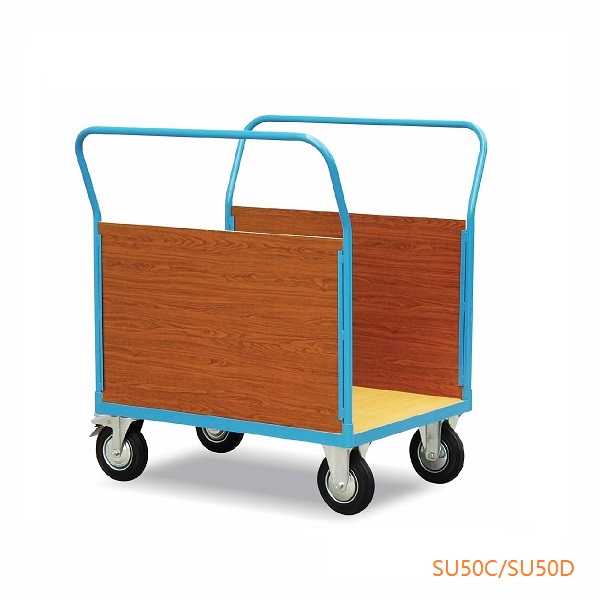

SU50C 500 1000×700 270 φ200×45 1000×930×1170 47
SU50D 500 1200×800 270 φ200×45 1200×1030×1170 50

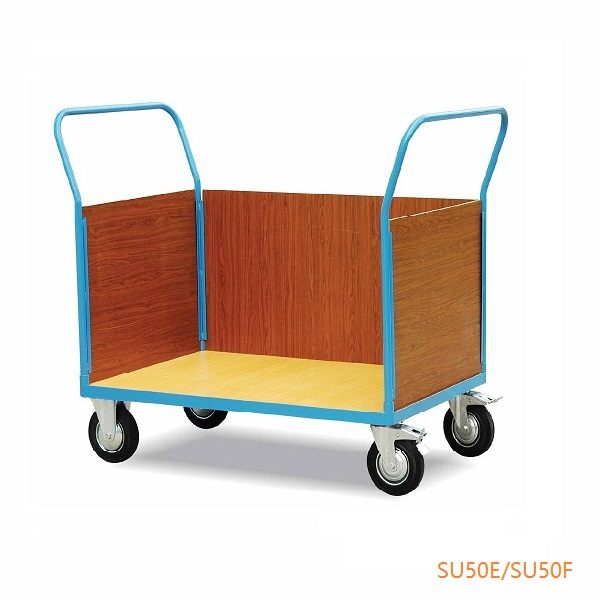

SU50E 500 1000×700 270 φ200×45 1200×700×1170 50
SU50F 500 1200×800 270 φ200×45 1400×800×1170 53

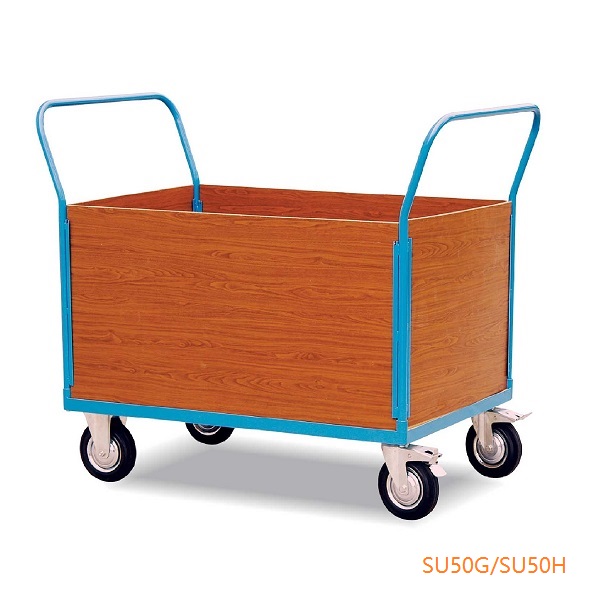

SU50G 500 1000×700 270 φ200×45 1200×700×1170 56
SU50H 500 1200×800 270 φ200×45 1400×800×1170 60
